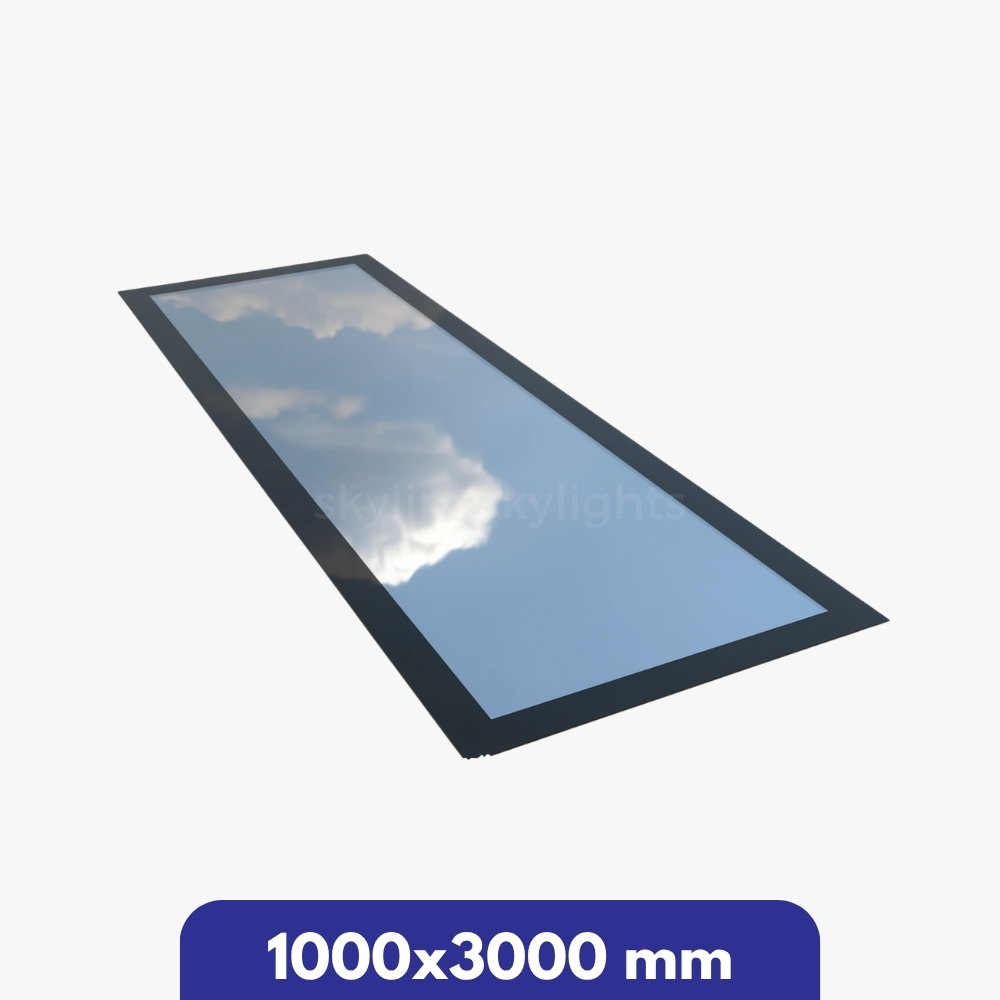

1000 x 3000 mm Frameless Triple Glazed Flat Roof Skylight

🔍 Quick Specifications

• Glazing Format: Triple Glazed

• Visible Glass Size (Internal): 1000 x 3000 mm

• Total Glass Size (External): 1200 x 3200 mm

• Thermal Efficiency (U-Value): 0.9 W/m²K

• Solar Control (G-Value): 58%

• Approx. Weight: 181.80 kg

• Glass Appearance: Clear Tint

• Self-Cleaning Feature: Included

• UV Protection: Yes

🛠 Glazing Structure

Engineered with three premium layers of thermally toughened glass to support strength and insulation:

• Top Layer:
  8 mm Planibel Clearlite – Heat Strengthened (BS EN 12150)
  Spacer: 15 mm Black Warm Edge
  Gas Layer: 15 mm Argon (90% filled)

• Middle Layer:
  6 mm Planibel Clearlite – Heat Strengthened (BS EN 12150)
  Spacer: 15 mm Black Warm Edge
  Gas Layer: 15 mm Argon (90% filled)

• Bottom Layer:
  6 mm iplus Low-E Toughened Glass – Energy Efficient (EN 12150)
  (For units wider than 1000 mm, a strengthened bottom layer is advised.)

📋 Certification & Standards

• Fully CE Compliant

• Adheres to UK Building Regulations

• Built to meet British Safety Standards

• Safety Markings included

• All layers are toughened and compliant

🧱 Installation Guidelines

• Border Note: External dimensions include a 200 mm black perimeter edge

• Opening Suggestion: Leave a 10 mm internal gap from upstand to upstand
  → For this skylight: 1010 x 3010 mm recommended

• Timber Framing: Suitable with 2×1” or 2×2” timber

• Foam Rope: Use atop the internal batten to evenly distribute weight

• Sealant: Only use Dowsil 791 (black) — acrylic sealants are not suitable

✅ Key Highlights

• 20-Year Manufacturer Warranty

• Stocked & Dispatched from UK

• Detailed Installation Guide Included

• Ongoing Support Available

• Protected, Seamless Payment Options

• Floods Interiors with Natural Light

• Clean, Borderless Frameless Look

🌤 About Skyline Sky Lights

At Skyline Sky Lights, we design with purpose—combining clean architecture with advanced glazing technology. Each skylight is built for optimum light entry, thermal performance, and long-lasting durability, enhancing living and working environments with a modern, energy-smart touch.
